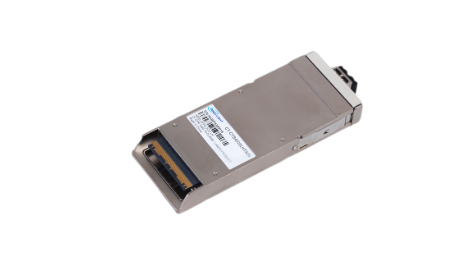

400G CFP2 DCO
coherent CFP2 DCO product family is designed based on dual polarization quadrature phase shift keying (DP-QPSK) or dual polarization quadrature amplitude modulation (DP-16QAM) or probabilistic constellation shaping quadrature amplitude modulation (PCS-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. The product family supports 100/200/400Gbps transmission speeds in an industry-standard, pluggable CFP2 form factor with 7nm DSP and can be widely used in metro carrier, access and Cloud/DCI applications
Electrical lamellae: 400G TMUX
400G branch line in one board card
Four 100G QSFP28 ports or one QSFP-DD 400G port are supported on the customer side
One CFP2 400G port with adjustable wavelength is supported on the line side
Electrical laminate: 200G TMUX
Dual 200G branch line in one board card
Two groups of customer side support 2 100G QSFP28 ports
Each of the two groups of line side supports 1 CFP2 200G interface with adjustable wavelength
Electrical laminate: 200G TMUX
200G-10G branch line in one board card
20 10G SFP+ ports are supported on the customer side
One CFP2 200G port with adjustable wavelength is supported on the line side
Optical laminates: OTDR
With OA/OLA/WSS board OTDR interface, on-line detection of fiber link distance, attenuation, total loss and other parameters test; Single card supports connection of 8 ports switching detection
Optical laminates: OCM
Interconnect with MON port of OA/OLA/WSS board to detect the center wavelength, optical power and other parameters of each channel in the OMS layer optical signal; A single card can be connected to eight ports for switching detection
