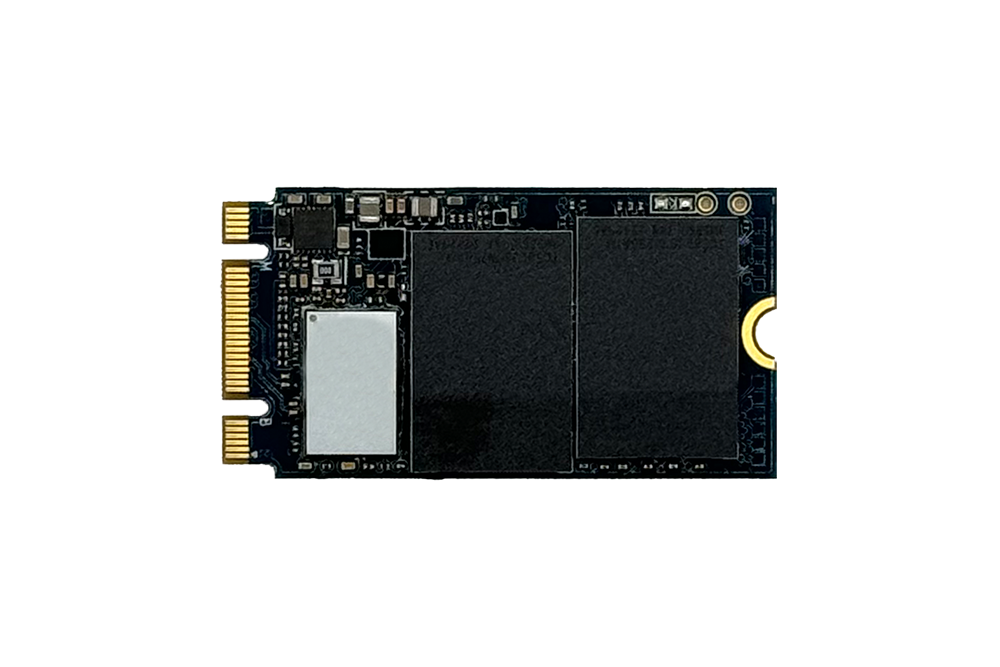

NVMe PCIe Gen3 x2
Provide the capacity range from 128GB to 512GB.Checkmark IconReach up to 1730 MB/s read as well as 1180 MB/s write high performance.Series NameInterfaceNVMe PCIe Gen3 x2Capacity Coverage128GB ~ 512GBCapacity3D TLC128GB ~ 512GBPerformance OverviewSeq. R : 1730 MB/s ; Seq. W : 1180 MB/sPerformance3D T

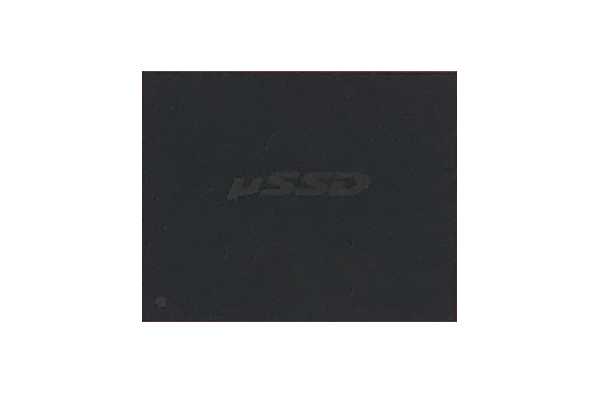

NVMe PCIe Gen3 x2
Series NameInterfaceNVMe PCIe Gen3 x2Capacity Coverage64GB~2TBCapacity3D TLC64GB~2TBPerformance OverviewSeq. R : 1700 MB/s ; Seq. W : 1600 MB/sPerformance3D TLCSeq. R : 1700 MB/s ; Seq. W : 1600 MB/sStandard Operating Temperature0~70°CExtended Operating Temperature-40~85°CDimension LxWxH (mm)42mm(

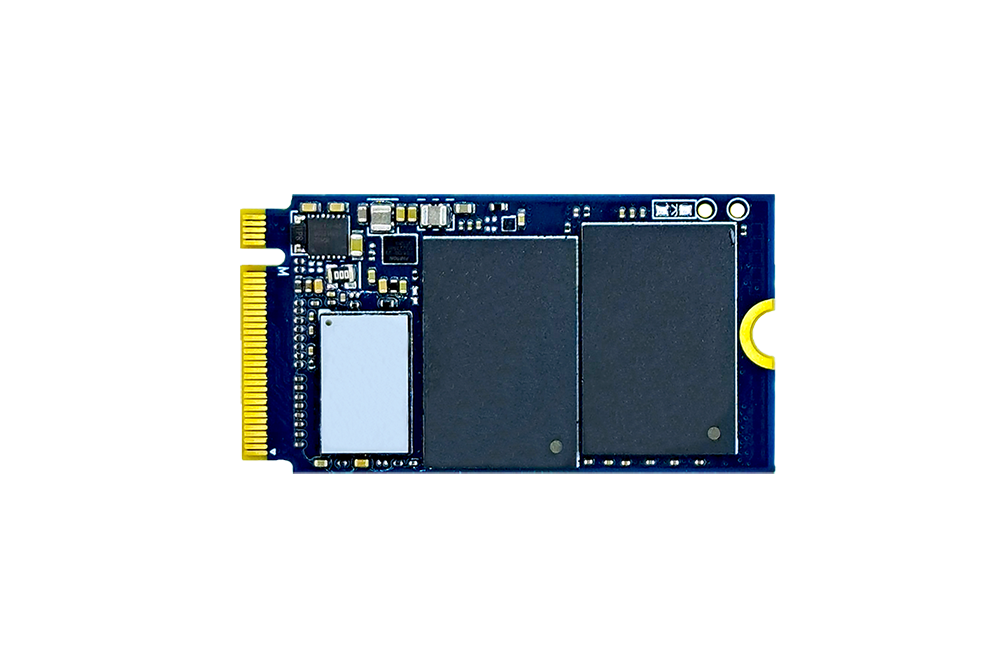

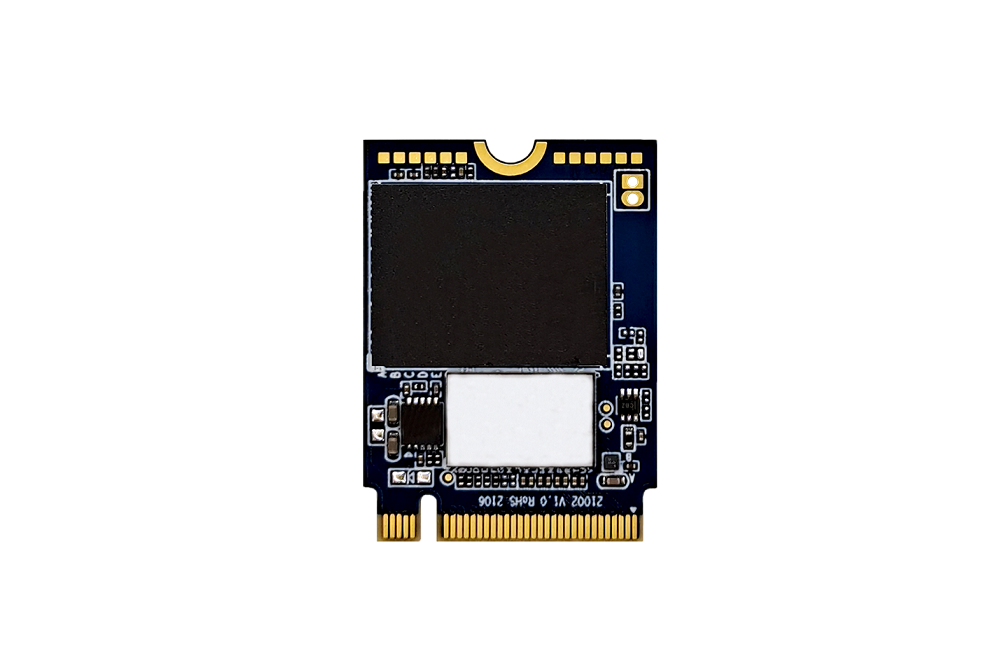

NVMe PCIe Gen3 x4
Checkmark IconProvide a wide range capacity up to 2TB.Checkmark IconReach up to 2,500MB/s read and 2,100MB/s write based on KIOXIA/WD flash.Series NameInterfaceNVMe PCIe Gen3 x4Capacity Coverage32GB~2TBCapacity3D TLC64GB~2TB3D pSLC32GB~512GBPerformance OverviewSeq. R : 2500 MB/s ; Seq. W : 2100 MB/s
NVMe PCIe Gen3 x4
Checkmark IconProvide a wide range capacity up to 1TB.Checkmark IconReach up to 2,500MB/s read and 2,000MB/s write based on KIOXIA/WD flash.Series NameInterfaceNVMe PCIe Gen3 x4Capacity Coverage16GB~1TBCapacity3D TLC64GB~1TB3D pSLC16GB ~ 256GBPerformance OverviewSeq. R : 2500 MB/s ; Seq. W : 2000 MB
