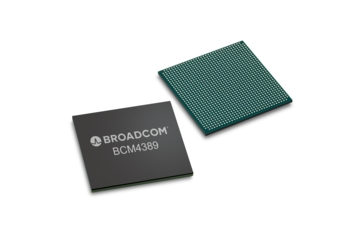

BCM4389
● Full Wi-Fi 6E support with legacy compatibility
● 6GHz band support
● 160MHz channel width
● BT Xstream Dual Bluetooth capability
● Tri-Band Simultaneous Wi-Fi
● WPA3+ security

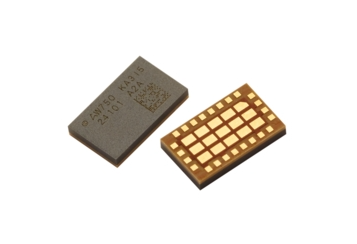

AFEM-W750
● 5GHz FBAR Band-Pass filter (UNII-1 to UNII-3) integrated
● 6GHz CoEx, rejection (5945-7125 MHz): >50dB
● High Power Pout +25dBm, MCS0 20MHz
● High Power Pout +23dBm, MCS0 20MHz
● Broadcom WiFAM Gen-2 Certified (Wireless FEM Active Management)
● Compatible with Dynamic Bias Handling Technology
● 24 pins surface mounting package
● Integrated Detector
● Small Size (3.0x5.0mm)
● Package Height 0.8mm
● WCC Reference Design
● Internal 50 Ω matching networks for both RF input and output
● Green - Lead-free and RoHS compliant

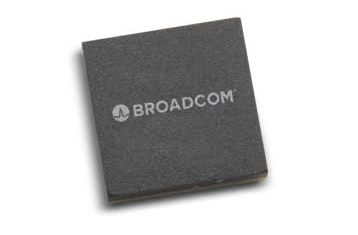

BROADCOM
● All ports matched to 50-Ohm
● High dynamic range and high rejection
● Low insertion loss
● Subminiature size: 1.6 x1.8 mm footprint, 0.70 mm max height
● High power rating
● Environmental: RoHS 6 compliant, halogen free, TBBPA free
