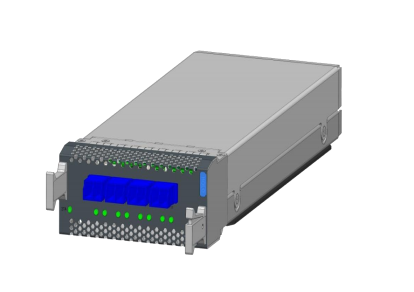

Electrical lamellae: 400G TMUX
400G branch line in one board card
Four 100G QSFP28 ports or one QSFP-DD 400G port are supported on the customer side
One CFP2 400G port with adjustable wavelength is supported on the line side

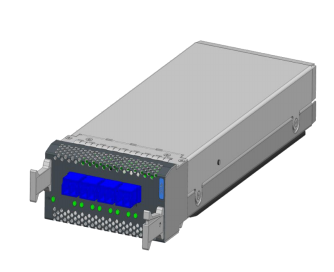

Electrical laminate: 200G TMUX
Dual 200G branch line in one board card
Two groups of customer side support 2 100G QSFP28 ports
Each of the two groups of line side supports 1 CFP2 200G interface with adjustable wavelength

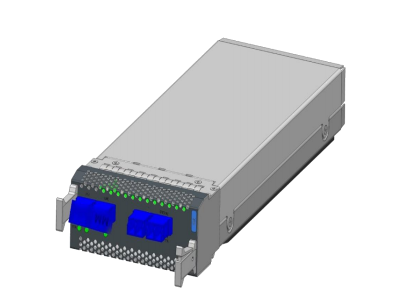

Electrical laminate: 200G TMUX
200G-10G branch line in one board card
20 10G SFP+ ports are supported on the customer side
One CFP2 200G port with adjustable wavelength is supported on the line side

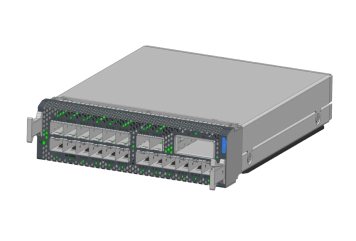

Optical laminates: OTDR
With OA/OLA/WSS board OTDR interface, on-line detection of fiber link distance, attenuation, total loss and other parameters test; Single card supports connection of 8 ports switching detection

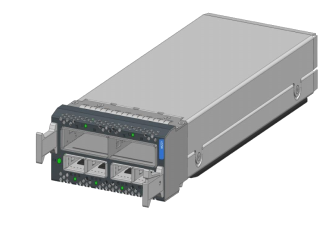

Optical laminates: OCM
Interconnect with MON port of OA/OLA/WSS board to detect the center wavelength, optical power and other parameters of each channel in the OMS layer optical signal; A single card can be connected to eight ports for switching detection

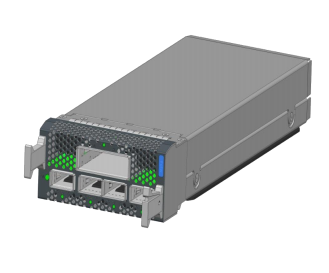

Light laminates: OA
Used in optical terminal station, amplification of OMS layer optical signal Internal integrated power amplifier and preamplifier, built-in 1 direction OSC channel
